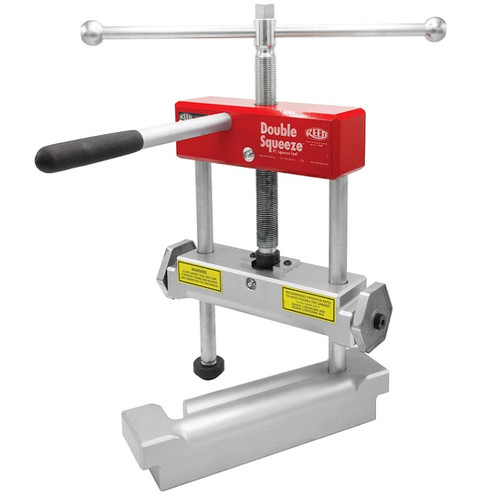

Reed PES4DB Double Squeeze PE Squeeze Tool for 2" - 4" 04336

Double bar PE squeeze-off tools provide two pinch points to increase squeeze confidence and yield optimal flow control.  REED offers the best designed tools for stopping flow in ½” up to 8” PE pipe. User input resulted in features like hand grooves for lifting, reduced weight, and a controlled, low-effort squeeze.  Sliding bar handles on these manual squeeze tools make work in tight places easier and increase leverage for tightening. Fine-pitched thread on feed screw allows for a consistent, smooth squeeze. Grease fittings at friction points make operation smooth and extend tool life.

Multiple size/SDR settings on one pair of stops provide convenient over-squeeze protection for standard pipe sizes.

• Optimized double bar design best manages flow control.
• Screw drive design reduces manual operator squeeze effort by approximately 30%.
• Hand placement area machined into bottom bar allows for easy lifting.
• ASTM squeeze and release rates posted on tool body.
• Grease fittings at friction points.
• Capacity: 2"-4" nom.  (2.38" - 4.50" O.D.)
• Pipe/SDR Stops: 7  (98094)
• Length: 20"

Reed strongly recommends use of the PEGR7 Static Grounding Device (#04621) with PE Squeeze Tools. Use a grounding device as a precaution against static build-up. Dissipate the charge and minimize the possibility of ignition.
