Reed DM3MECHB Mechanical Hot Tapping 08351

Base model for NPT in storage case, no hole saws or arbor

• Hot tap tool for piping, fittings and valves with NPT threads.
• Hot tap steel, galvanized, copper, brass or aluminum pipe for installing branch connections from 3/4” to 4” valves.
• Base model includes main body assembly, shafts, and accessories in a storage case; operator buys hole saws and arbor separately.
• Works with REED bi-metal hole saws or other common brands.
•
• Valve Size:  3/4" -4"

All REED DM3MECH models make branch connections through 3/4” to 4” valves on any appropriately sized mainline for most piping materials. With the right hole saw, these machines connect to chilled and hot water systems up to 300 psi and steam systems up to 15 psi without a shutdown of service This process is known as hot tapping.  The machine works for mild steel, galvanized steel, stainless steel, copper, brass and aluminum pipe.  Mechanical Hot Tapping Machine drills through the pipe wall via fittings inserted into the service saddle or thread-o-let. The machine eliminates the need to shut down, drain, cut, refit and refill piping systems.

NOTES:

• Hole saws are to be used per hole saw manufacturer's recommended RPM with a 3/8" or 1/2” drill motor.
• Not recommended for ammonia, gas or other caustic systems.

Other Parts impacted: 93500, 93501, 93502, 93503, 04561

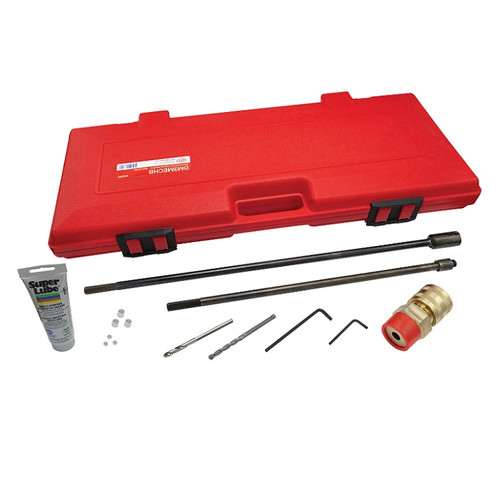

CONTENTS

08350 DM3MECH HOT TAPPING OPERATOR'S MANUAL
08358 COUPON RETAINER 3/8 DIA MAGNET-3 PK
08359 COUPON RETAINER 1/4 DIA MAGNET-3 PK
40149 5/32 ALLEN WRENCH-LONG ARM HEX
40296 HEX WRENCH FOR DMHSA/PPR
04561 DRILL BIT, 1/4" X 4-5/16 LENGTH
99129 DRILL BIT, 1/4” COUPON RETAINING
93514 24", 1/2" DIA. SHAFT W/HOLDER
93515 18", 1/2" DIA. SHAFT W/SLEEVE
93526 TOOLBOX, PLASTIC
93527 MAIN BODY ASSEMBLY
43512 H1 GREASE (3 oz. tube)
