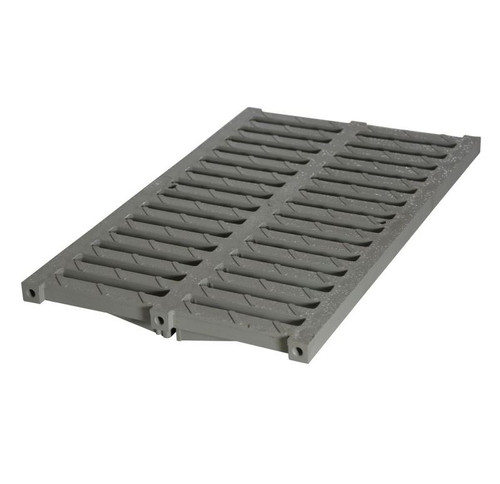

NDS Pro Series 12" Light Traffic Channel Grate 847
Brand : NDS
$165.59
- SKU:
- NDS847
- UPC:
- 052063808475
- Availability:
- Usually Ships in 24 Hours
Use with 12" Pro Series Channel Drain Series
Features
- Actual dimension 11 3/4" x 19 5/8" (aPPROX 20") x 3/4"
- High impact PVC light traffic channel grate
- Use part #849 Grate Security Clip to secure grate to channel
- Open surface area 48.77 square inch/foot
- 63.89 GPM per foot
- Recommended for medium-duty pneumatic tire traffic.
- Autos and light trucks less than 20 mph
- Class B Load Rating: 61-175 psi
- See Technical Specs • Product Brochures & Specifications for installation recommendations
