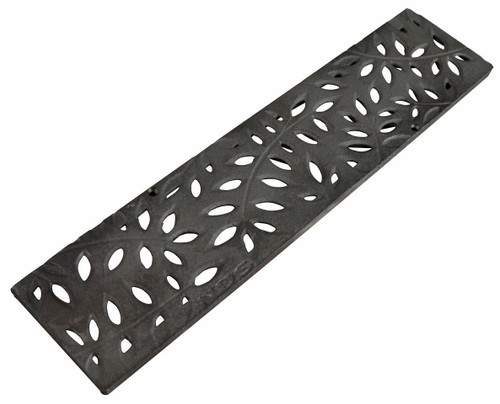

NDS Mini Channel Botanical Grate (Cast Iron) 554CI

Brand : NDS

(No reviews yet) Write a Review

$50.72

View Details

Grate only - Fits NDS Mini Channel

Features

Actual dimension 2.738" x 12" x .38"
Requires 4 #846 Screws
Raw Cast Iron Grate
Open surface area 5.39 square inches per lineal foot
16.49 GPM per minute per lf with 1/2" of head
ADA Compliant
Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph
Class B Load Rating: 61-175 psi
See Technical Specs • Product Brochures & Specifications for installation recommendations
