CDTM2100 Combination Tap & Drill Machine 09314

Combination Drilling/Tapping Machines are easier to use, save operating time, and are a better value than any other machine. The CDTM models are tapping machines with the necessary components for conversion to drilling machines. The CDTM2100 is a TM1100 with components for converting to a DM2100.  All these combination models feature REED’s flip clamp. They utilize REED DT series drill taps and REED D series drill bits, hole cutters, heavy-duty hole cutters, and PVC shell cutters. Drill taps, drill bits, and hole cutters must be purchased separately. NPT adapters also available.

• 3/4" & 1" Tap
• 3/4 - 2" Drill
• Pipe Diameter: 4" - 48"
• Modular design allows fast and simple conversion back and forth from tapping to drilling machine.
• Quick clamp feed mechanism requires little adjustment, saving time for the operator.
• Compact design requires less digging as radius = 32” which is less than competitor models.

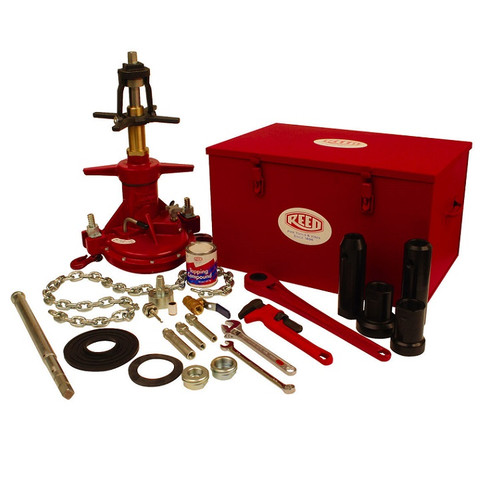

09314 CDTM2100 Kit includes:

Item Code   Description
99309         Boring Bar Assembly
99300         Threaded Body
98430         Top Chamber Assembly
99305         Feed Assembly
40383         13/16” Female Drive Ratchet Wrench
40417         Steel Toolbox
98425         Tapping Compound
98417         5 ft. Chain
40369         Chain Hook
40372         Saddle Gasket
40371         Saddle Ring Gasket
40405         5/8" Combination Wrench
98423         3/4" Corporation Insertion Tool
98424         1" Corporation Insertion Tool
98422         Adapter Shank
98411         Bearing Sleeve
98412         Knockout Pin
08423         3/4" Corp Adapter
08424         1" Corp Adapter
98461         3/4" Drill Adapter
98462         1" Drill Adapter
99304         DM Boring Bar
02205         CW10 10" Adj. Wrench
40396         1/2" Ball Valve
97564         1/2" Nipple
08413         Hole Saw Adapter
08425         1½” AWWA Corp Adapter
08426         2” AWWA Corp Adapter
99308         3/32 Hex Key
94150          PVC Drill Adapter
02112          RSPUD Spud Wrench
