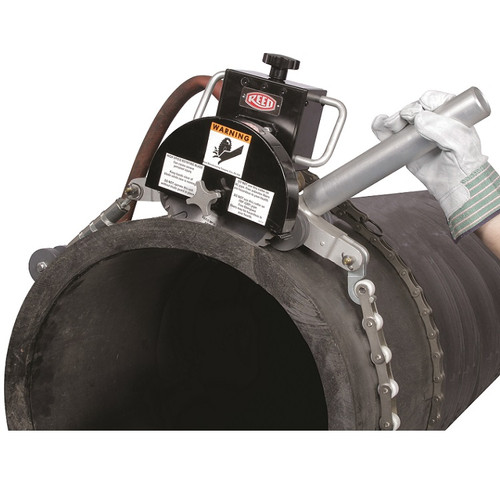

Reed UPC836APE Universal Pipe Cutter 8"-36" 07517

The REED UPC is lightweight; cuts fast; requires only 12” clearance around the pipe; provides a square cut virtually every time; and can be operated underwater. It is by far the safest, easiest and fastest power cutter to setup, operate and maintain, which nets a low operating cost.

• Specifically designed for cutting PE Pipe.
• Lightweight, easy-to-use.
• Includes special blades and blade guard for cutting PE.
• Pneumatic-powered UPC836APE Universal Pipe Cutters for PE cuts 8” -36” nominal diameter (200-1000 mm actual O.D.) PE pipe.

Both UPC836APE and UPC848APE kits ship in a steel toolbox and include a UPC cutter, a filter-regulator-lubricator, #97520 and #97521 blades. The #97521 blade will cut large diameter PE pipe with a wall thickness up to 2.65” (67 mm). To cut 6” - 8” PE pipe, the #97519 blade must be ordered separately.

Use Reed's Blade Chart for guidance.

• Pipe Diameter: 8" - 36"
• Application: PE, HDPE

STANDARD EQUIPMENT

• Power Cutter with 1.7 H.P. Motor
• Chain / Turnbuckle Assembly
• Connection Frames & Chain to cut up to 36"
• Filter / Regulator / Lubricator with Stand
• Carrying Case
• Air Motor Oil
• Grease Gun
• Hex Key Wrench Set
• Open End Wrenches
• Wedges
• UPCSTEEL6 6" Blade
• UPSPE8 8" Blade

UNIVERSAL PIPE CUTTER POWER REQUIREMENTS

• Maximum RPM: 3675
• Air Consumption: 50 cu. ft. / min
• Pressure: 90 PSI Maximum
• Shut-Off: 3/4" Ball Valve
• Air Supply Fittings:  3/4" Dixon "Air King" Coupling

NOTE: Universal Pipe Cutters must ship via truck freight.

NOTE: When cutting steel pipe with the steel blades, sparks are possible and expected. Because of the sparks, the UPC cannot be used for cold cuts.
